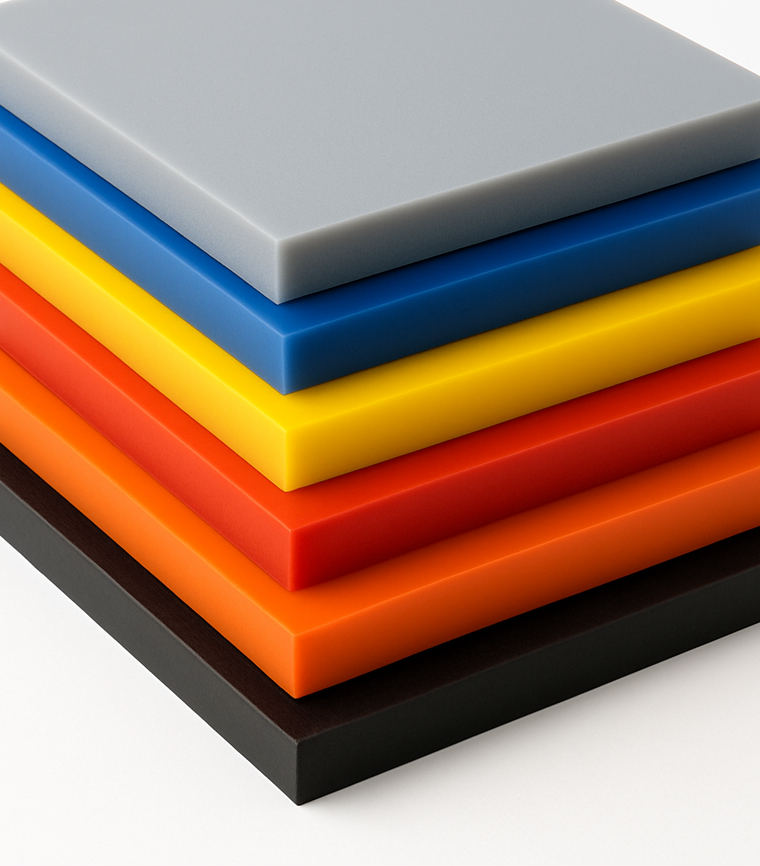

Urethane polyurethane sheets stacked showing multiple custom colors including gray blue yellow red orange black

About Our Urethane Sheets

Urethane sheets, also known as polyurethane sheets, are high-performance polymer materials that offer superior durability, abrasion resistance, and chemical resistance compared to traditional rubber. Our cast urethane sheets are manufactured to the highest industry standards and are available in multiple thicknesses (1/8" to 5/8"), durometers (40A to 90A), and sheet sizes (12"x12" to 48"x48").

We stock black and orange urethane sheets for immediate shipping, with custom colors, thicknesses, and durometers available upon request. All sheets feature a size and thickness tolerance of +/- .030" and are made in the USA for consistent quality and reliability.

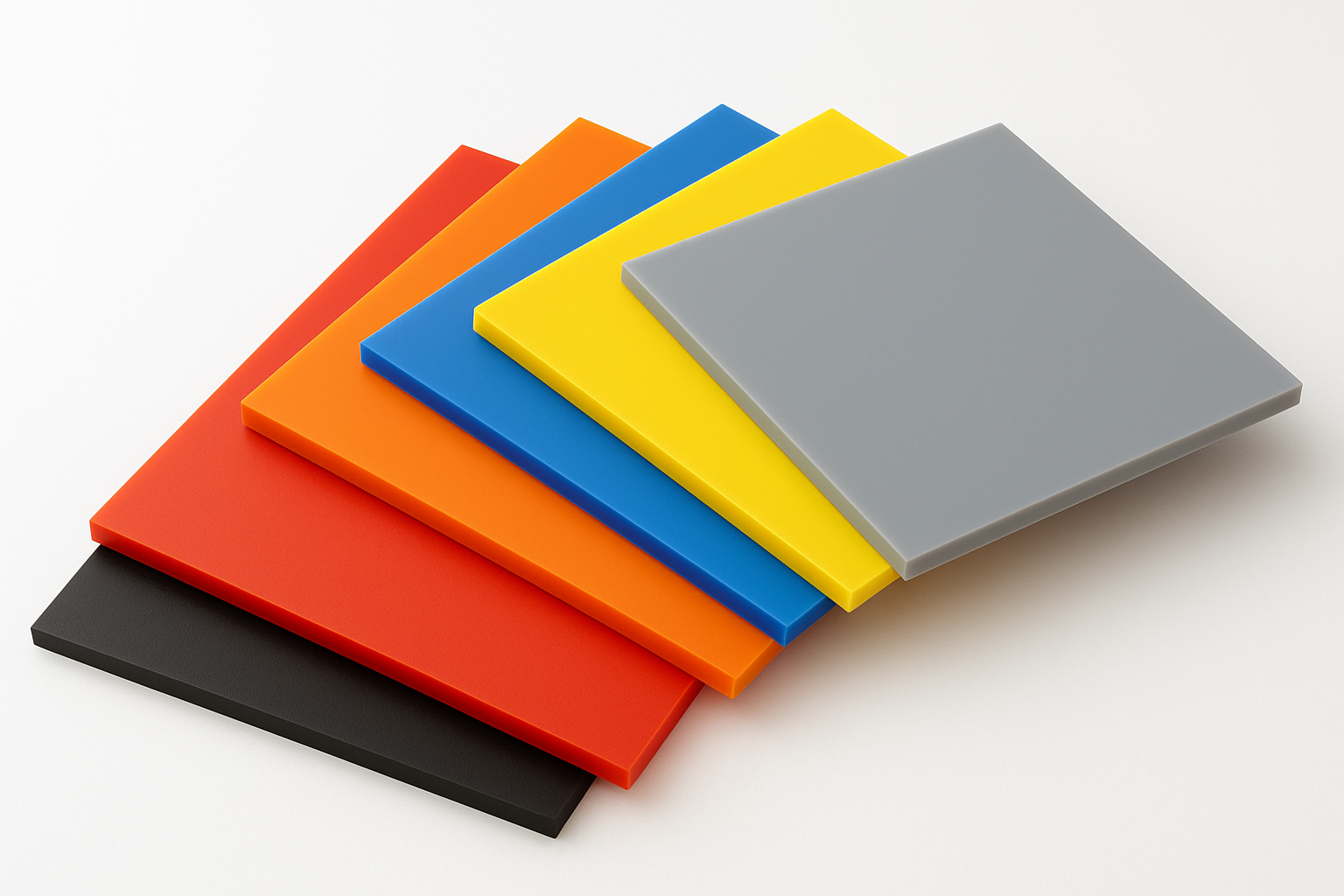

Custom Urethane Sheets - Made to Your Specifications

DON'T SEE WHAT YOU NEED?

We manufacture custom urethane sheets to your exact specifications. If you don't see the right thickness, color, durometer, or size in our standard offerings, we can produce it for you.

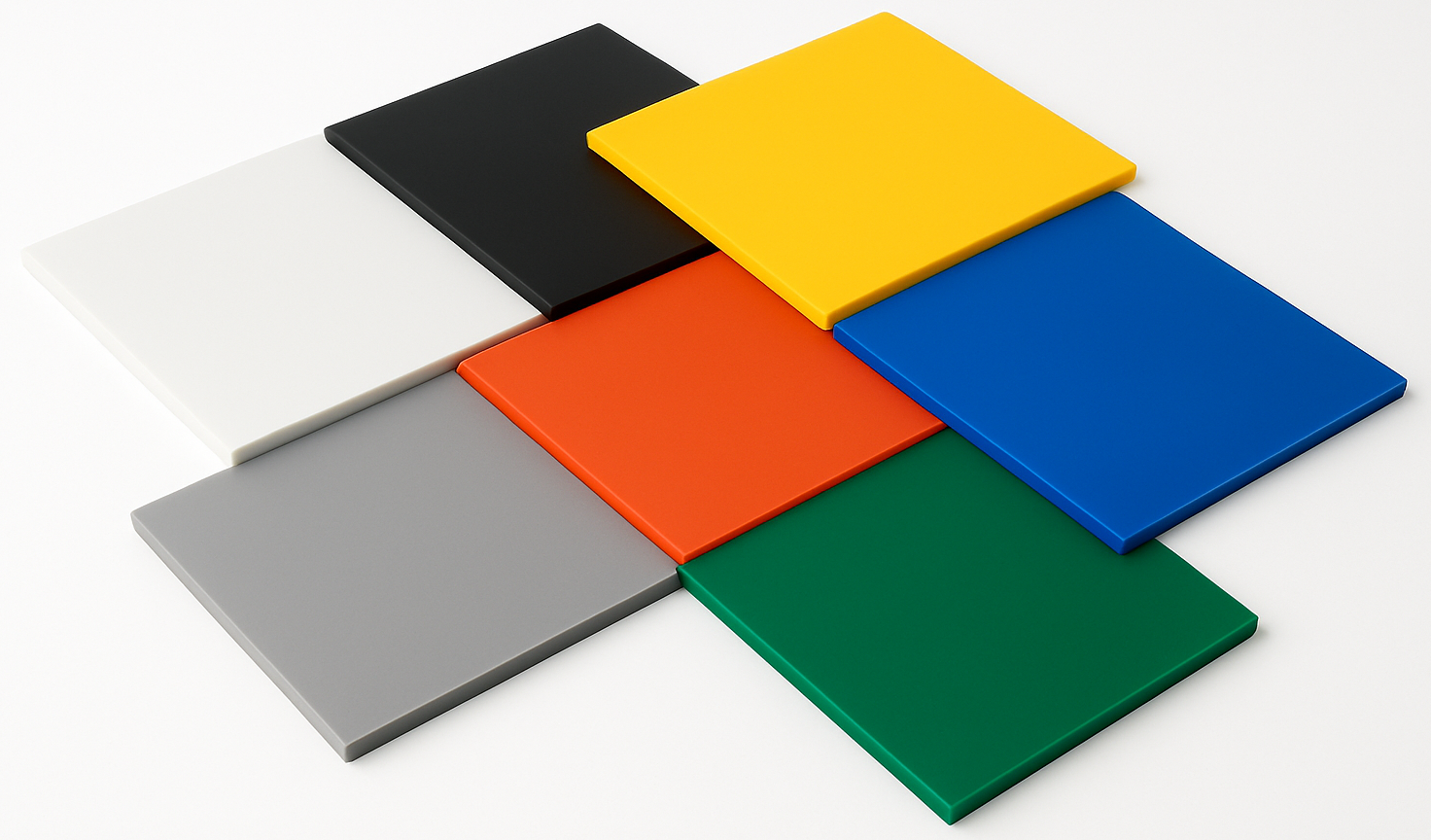

Custom Colors Available:
Red, yellow, blue, green, gray, white, and specialty colors upon request. While we stock black and orange for immediate shipping, any color can be manufactured to order.

Extended Durometer Range:
From 20A (extra soft) to 95A (extra hard), and even D-scale durometers for extremely hard applications. Not limited to our standard 40A-90A range.

Custom Thicknesses:
Any thickness from 1/32" up to 4" or more. We can produce sheets outside our standard thickness range (1/8" to 5/8").

Custom Sheet Sizes:
Up to 38.5" wide and 122.5" long. Larger sizes available through seamed construction. Any dimension within these limits can be produced.

Special Formulations:

  • FDA food-grade compliant urethanes
  • Anti-static formulations
  • High-temperature resistant compounds
  • Chemical-resistant specialty blends
  • Flame-retardant options

Custom Order Process:
Contact us with your specifications for a quote. Custom orders typically ship within 7-10 business days depending on requirements. Don't leave our site without reaching out - we can likely make exactly what you need!

Why Chose Polyurethane Sheets Over Rubber?

Superior Durability & Longevity
Urethane sheets last 5-10 times longer than traditional rubber sheets in high-wear applications. The material's exceptional abrasion resistance and tear strength make it ideal for demanding industrial environments.

Chemical & Oil Resistance
Polyurethane maintains excellent resistance to oils, greases, hydrocarbons, and many industrial solvents. This makes urethane sheets perfect for automotive, manufacturing, and food processing applications.

Wide Hardness Range
Available in durometers from 40A (very soft) to 90A (hard), urethane sheets can be selected to match your exact application requirements - from cushioning and vibration dampening to structural wear components.

Temperature Stability
Our urethane sheets perform reliably in temperatures ranging from -40°F to 180°F, maintaining their physical properties across a wide operating range.

Load-Bearing Capacity
Superior compression set resistance and elastic memory mean urethane sheets maintain their shape under repeated loading, outperforming rubber in press brake applications and die cutting.

Comprehensive Urethane Solutions: Beyond Sheet Stock

  • Custom Urethane Fabrication

    Our precision waterjet cutting services transform urethane sheets into custom parts, pads, and components with exceptional accuracy. We cut intricate shapes and complex geometries in all thicknesses and durometers of urethane with clean edges and tight tolerances. From simple washers to complex shapes, our waterjet capabilities deliver precisely fabricated parts with quick turnaround times for both prototypes and production runs.

  • Molded Urethane Components

    We partner with specialized molding manufacturers to produce custom urethane components beyond flat sheets. Our capabilities include compression, transfer, and injection molding for bushings, bumpers, rollers, and custom profiles in any durometer and color. Whether small production runs or high-volume manufacturing, we deliver molded urethane parts that maintain tight tolerances and superior performance.

  • Custom Manufacturing

    We manufacture urethane sheets beyond our standard offerings: any thickness (1/32" to 2"+), custom durometers (20A-95A, D-scale), specialty colors, sheet sizes up to 48"x132", and special formulations (FDA, anti-static, high-temp, chemical-resistant, flame-retardant). Contact us with your unique requirements—we'll produce urethane to your exact specifications, typically within 7-10 business days.

Choosing the Right Urethane Sheet Thickness

1/8" (.125") Thick Urethane Sheets
Ideal for gaskets, thin die cutting pads, light vibration dampening, and applications requiring flexibility. The thinnest option provides maximum flexibility while maintaining urethane's superior properties.

3/16" (.188") Thick Urethane Sheets
Versatile thickness for general-purpose gaskets, seals, and moderate wear applications. Balances flexibility with durability.

1/4" (.25") Thick Urethane Sheets
Popular choice for die cutting pads, press brake tooling, and general industrial applications. Provides excellent load distribution and wear resistance.

3/8" (.375") Thick Urethane Sheets
Heavy-duty applications including metal forming dies, stamping operations, and high-load cushioning. Excellent for absorbing impact and distributing pressure.

1/2" (.5") Thick Urethane Sheets
Industrial-grade thickness for demanding applications. Used in heavy stamping operations, machinery bumpers, and structural wear components.

5/8" (.625") Thick Urethane Sheets
Maximum thickness for the most demanding applications. Ideal for heavy metal forming, severe impact protection, and applications requiring substantial material thickness.

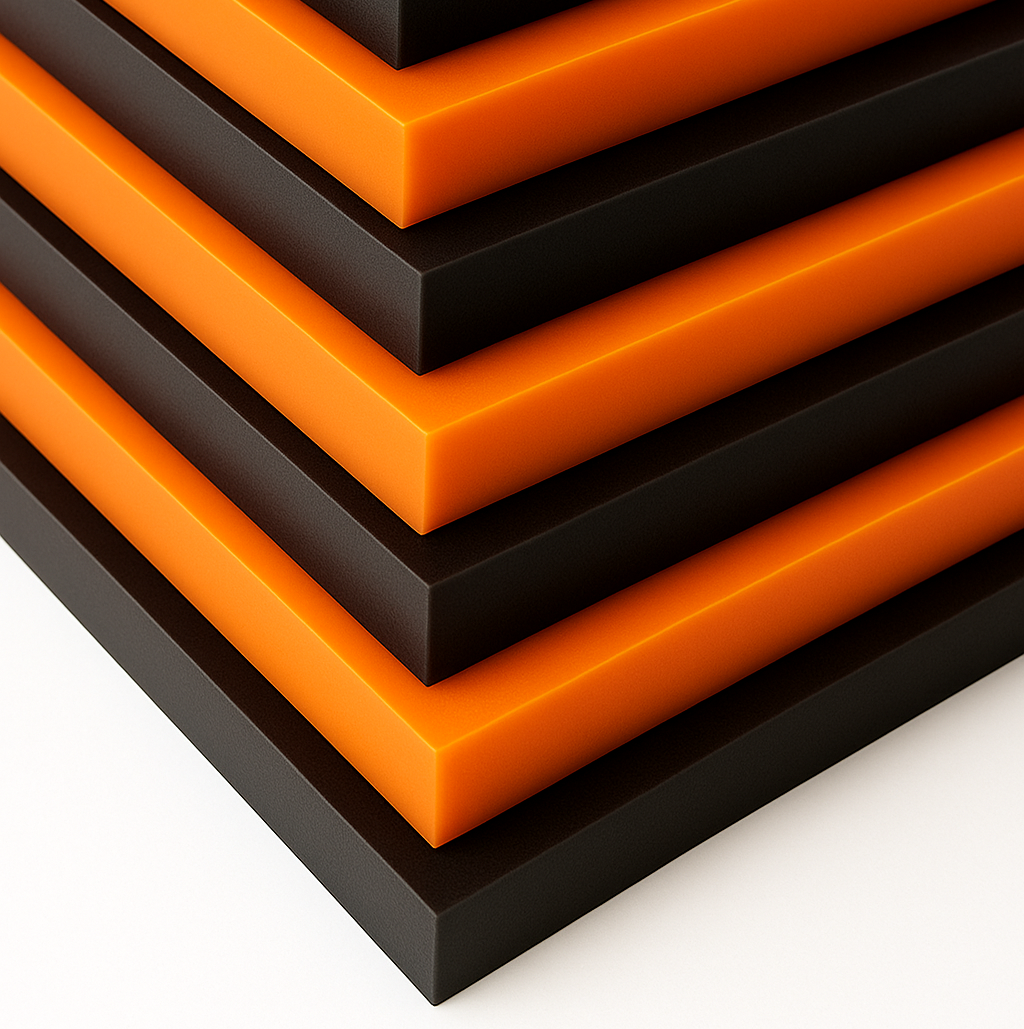

  • 24 inch by 24 inch black and orange urethane polyurethane sheets 1/8 inch thick stacked
1 1

1/8" Thick - 40-90A Durometer - 24" X 24" Urethane Sheets

$125.00 USD
$125.00 USD
Sale Sold out
Color
Durometer
View full details

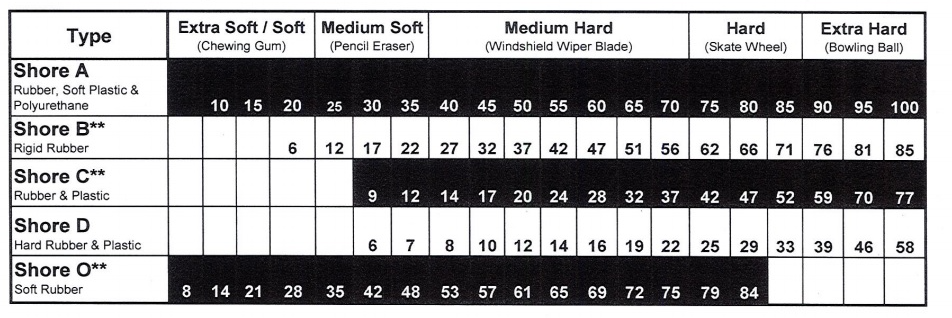

Understanding Urethane Sheet Durometer (Hardness)

40A Durometer - Very Soft
Best for: Maximum cushioning, vibration isolation, gentle gripping applications, and soft gaskets. Provides excellent shock absorption and conformability.

50A Durometer - Very Soft
Best for: Cushioning pads, flexible seals, light vibration dampening. Good balance of softness and structural integrity.

60A Durometer - Soft
Best for: General-purpose gaskets, flexible die cutting pads, moderate vibration dampening. The most versatile soft durometer.

70A Durometer - Soft
Best for: Die cutting applications, general seals and gaskets, automotive components. Industry standard for many applications.

80A Durometer - Slightly Hard
Best for: Wear strips, bumpers, press brake tooling, moderate load-bearing applications. Excellent balance of flexibility and wear resistance.

90A Durometer - Hard
Best for: Heavy-duty wear applications, structural components, high-load press brake dies. Maximum abrasion resistance and load capacity.

Selecting Your Urethane Sheet Size

12" x 12" Sheets (1 sq ft)
Perfect for small projects, samples, gasket cutting, and applications requiring minimal material. Cost-effective for testing durometers before larger orders.

12" x 24" Sheets (2 sq ft)
Ideal for medium-sized gaskets, multiple small parts, or prototyping. Provides flexibility for various cutting patterns.

24" x 24" Sheets (4 sq ft)
Versatile size for die cutting operations, larger gaskets, and multi-part projects. Popular choice for press brake tooling.

24" x 48" Sheets (8 sq ft)
Large format for industrial applications, bigger die cutting projects, and production runs. Excellent value per square foot.

48" x 48" Sheets (16 sq ft)
Maximum standard size for large-scale operations, production environments, and projects requiring substantial coverage. Best cost per square foot.

Browse Additional Gasket Material Options

Common Urethane Sheet Applications

  • Manufacturing & Metal Forming

    • Press brake dies and tooling
    • Stamping and forming pads
    • Die cutting blankets
    • Punch press cushions
    • Draw dies and stretch forming

  • Automotive Industry

    • Gaskets and seals
    • Vibration dampening components
    • Bump stops and suspension components
    • Weather stripping
    • Sound dampening panels

  • Industrial Equipment

    • Wear strips and slide bearings
    • Impact bumpers and guards
    • Conveyor components
    • Machine mounting pads
    • Protective liners

  • Construction & Building

    • Expansion joint material
    • Impact protection panels
    • Waterproofing membranes
    • Acoustic dampening
    • Floor protection

  • Material Handling

    • Chute liners
    • Hopper liners
    • Protective padding
    • Shock-absorbing components
    • Anti-vibration mounts

The Rubber Blog: Tips, Trends & Technical Insights

View all
  • What Are Urethane Sheets? Complete Guide to Polyurethane Material

    What Are Urethane Sheets? Complete Guide to Pol...

    What Are Urethane Sheets? Complete Guide to Polyurethane Material Urethane sheets are appearing in more industrial applications every year, but many professionals still wonder: what exactly are they, and why...

    What Are Urethane Sheets? Complete Guide to Pol...

    What Are Urethane Sheets? Complete Guide to Polyurethane Material Urethane sheets are appearing in more industrial applications every year, but many professionals still wonder: what exactly are they, and why...

  • What is PTFE Sheets: The Complete Guide to Polytetrafluoroethylene Material Properties and Applications

    What is PTFE Sheets: The Complete Guide to Poly...

    Complete guide to PTFE sheets properties, universal chemical resistance, and applications. Learn about Teflon specifications for pharmaceutical, food processing, and chemical manufacturing sealing.

    What is PTFE Sheets: The Complete Guide to Poly...

    Complete guide to PTFE sheets properties, universal chemical resistance, and applications. Learn about Teflon specifications for pharmaceutical, food processing, and chemical manufacturing sealing.

  • What is Viton Rubber: The Complete Guide to Fluoroelastomer Material Properties and Applications

    What is Viton Rubber: The Complete Guide to Flu...

    Complete guide to Viton rubber properties, chemical resistance, and high-temperature applications. Learn about fluoroelastomer specifications for chemical processing, aerospace, and extreme environment sealing.

    What is Viton Rubber: The Complete Guide to Flu...

    Complete guide to Viton rubber properties, chemical resistance, and high-temperature applications. Learn about fluoroelastomer specifications for chemical processing, aerospace, and extreme environment sealing.

1 3
View all

Urethane Sheet Technical Specifications

Material Properties:

  • Abrasion resistance: 5-10x better than rubber
  • Tear resistance: Superior to natural rubber
  • Tensile strength: Higher than most elastomers
  • Compression set: Excellent recovery properties
  • Chemical resistance: Excellent against oils, greases, hydrocarbons

Physical Characteristics:

  • Thickness tolerance: +/- .030"
  • Surface finish: Smooth, non-marking
  • Temperature range: -40°F to 180°F continuous
  • Color options: Black, orange (custom colors available)
  • Manufacturing: Cast polyurethane process

Quality Standards:

  • Made in USA
  • Consistent durometer throughout thickness
  • Uniform color and finish
  • Precise dimensional control
  • Quality tested for performance
1 4

How To Order Urethane Sheets

Stock Items:
Our black and orange urethane sheets in standard sizes ship within 1-2 business days if in stock. Simply select your thickness, durometer, size, and color, then add to cart. If you place an order and the item isn't in stock - a representative will email you with a lead time

Made-to-Order Items:
If your selected combination is not in stock, please allow 5-7 business days to ship. We'll email you within 24 hours to confirm availability and ship date.

Custom Orders:
Contact us with your specifications for custom colors, thicknesses, durometers, or sizes. We'll provide a quote and timeline, typically 7-10 business days for production.

Quantity Discounts:
Need multiple sheets? Contact us for volume pricing on orders of 5+ sheets.

Questions?
Our team is here to help you select the right urethane sheet for your application. Contact us with any technical questions or specific requirements.

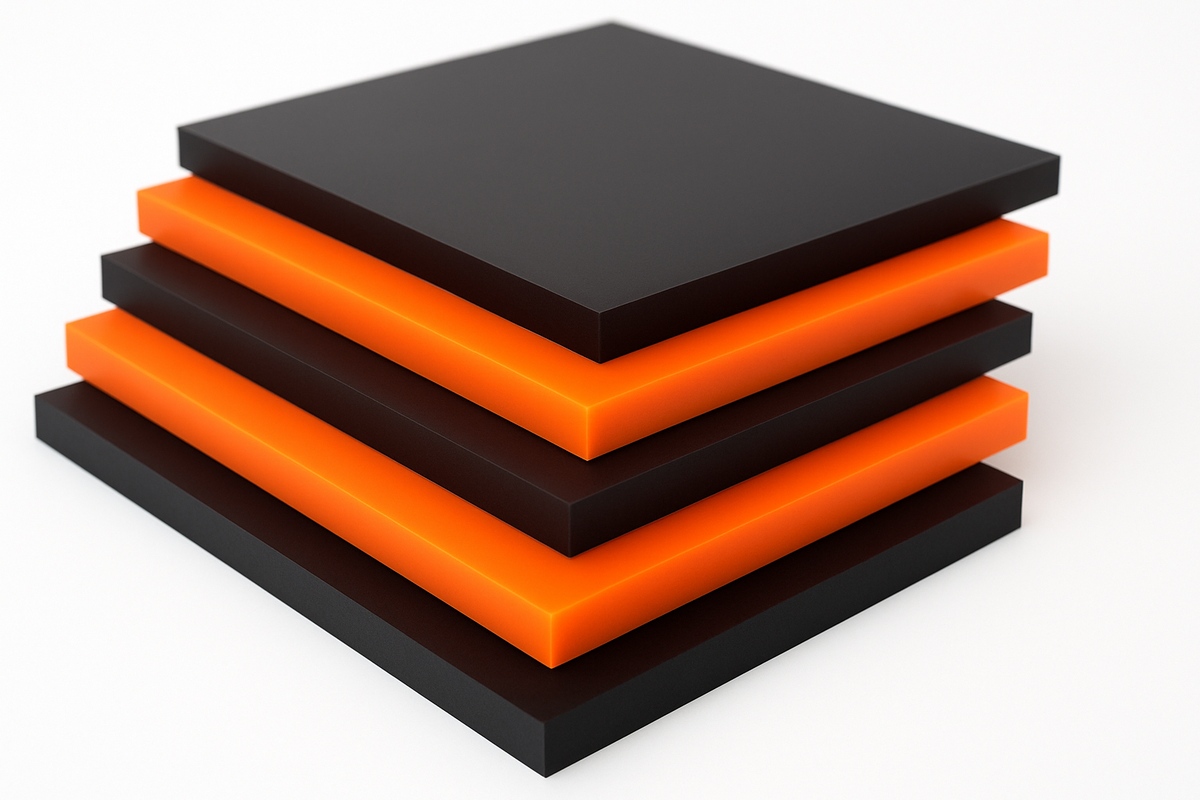

Black and orange urethane polyurethane sheets for industrial applications die cutting gaskets

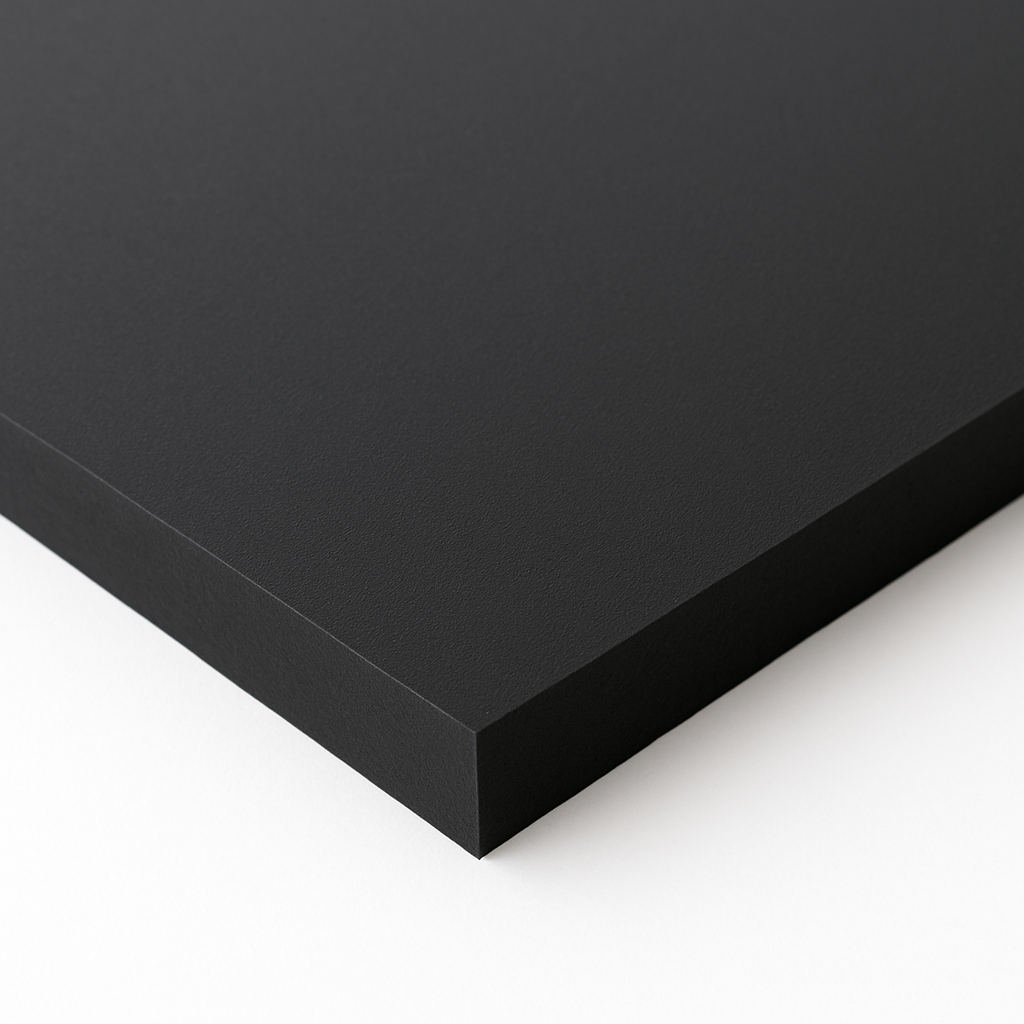

High quality black urethane polyurethane sheet with smooth surface industrial grade material

Frequently Asked Questions About Urethane Sheets

What's the difference between urethane and polyurethane?

Urethane and polyurethane refer to the same material. "Polyurethane" is the technical chemical name, while "urethane" is the common industry term.

How do I choose the right durometer?

Consider your application: softer durometers (40A-60A) for cushioning and vibration dampening, medium durometers (70A-80A) for general purpose, harder durometers (90A) for maximum wear resistance and load bearing.

Can urethane sheets be machined or cut?

Yes, urethane sheets can be easily cut with standard tools including band saws, circular saws, routers, and water jet cutting. If you want a quote on custom cut urethane parts, please reach out to us.

Are urethane sheets FDA approved?

Our natural/unpigmented urethane formulations can be made FDA compliant for dry food contact. Contact us for FDA food-grade options.

What's the shelf life of urethane sheets?

When stored properly (cool, dry, out of direct sunlight), urethane sheets have an indefinite shelf life and do not degrade like rubber.

Need some help selecting the right urethane? Contact our experts for guidance.
